• Specifically engineered for humanoid robot applications, delivering flexible and powerful limb motion control

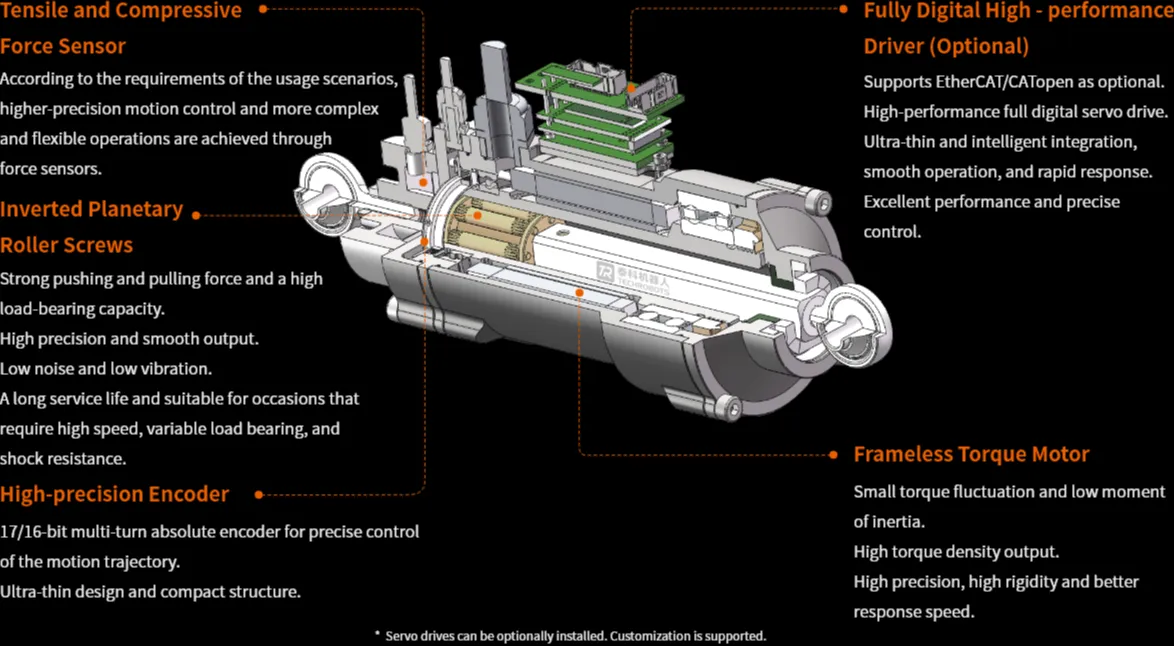

• Integrates a planetary roller screw, force sensor, motor, and encoder into one compact linear actuator
• Strong thrust, stable and reliable performance, with customizable options
• Ingeniously compact design, further reducing overall weight
• Available in multiple configurations, enabling quick, simple, and efficient humanoid robot assembly, significantly shortening development cycles
Max Thrust
Max Speed
96mm
Max Stroke
Min Self-weight

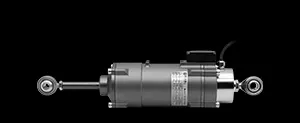

Max Thrust: 600N
Max Speed: 300mm/s
Max Stroke: 38mm
Weight: 0.5kg
Force Sensor: Tensile and compressive force sensor

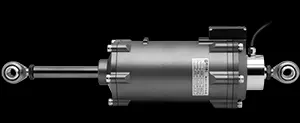

Max Thrust: 4000N
Max Speed: 120mm/s, 300mm/s
Max Stroke: 72mm
Weight: 1.3kg
Force Sensor: Tensile and compressive force sensor

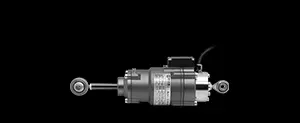

Max Thrust: 8000N
Max Speed: 120mm/s, 400mm/s
Max Stroke: 96mm
Weight: 2.8kg
Force Sensor: Tensile and compressive force sensor
New craftsmanship with unique ingenuity
